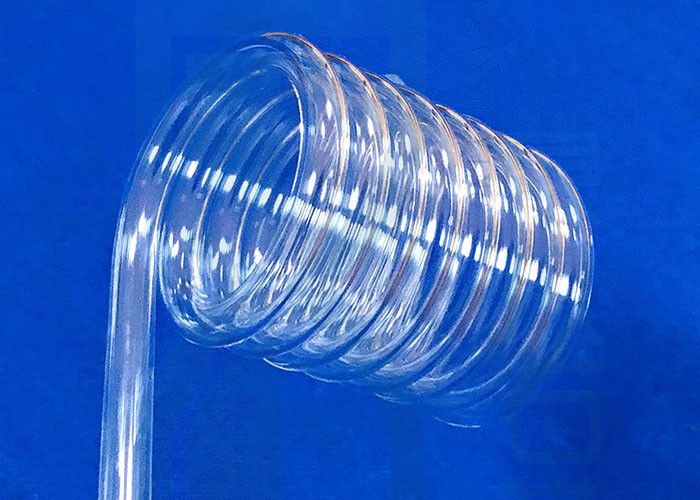

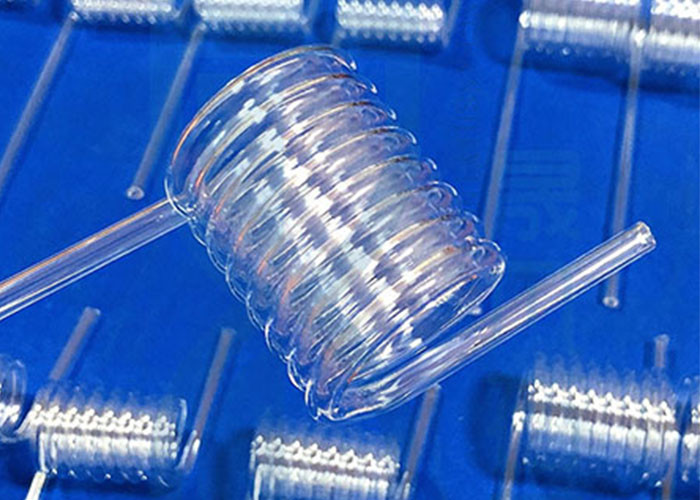

Tabung Kaca Kuarsa Bening OD 300mm untuk Lampu UVC dengan Ketahanan Suhu Tinggi
Detail Produk
| Nama Produk: | Tabung Kaca Kuarsa | Bahan: | SiO2> 99,99% |
|---|---|---|---|
| OD: | 3-300mm | Transmisi Cahaya: | > 92% |
| Temparature bekerja: | 1100 ℃ | Kekerasan: | Musa 6.5 |
| Nilai Resistansi: | 1000 kali lipat dari kaca biasa | Aplikasi: | sinar UVC |
| Menyoroti |
Clear Quartz Glass Coil Tube,Quartz Glass Coil Tubing,300mm OD Quartz Glass Tube |
||
Deskripsi Produk
- Kemurnian tinggi: SiO₂ > 99,99%
- Kinerja visual dan kimia yang sangat baik: tahan asam, tahan alkali, stabilitas termal yang baik
- Perawatan kesehatan dan perlindungan lingkungan
- Tidak ada gelembung udara dan tidak ada garis udara
- Isolator listrik yang sangat baik
| Tipe | JGS1(ZS-1) | JGS2(ZS-2) | JGS3(HS) |
|---|---|---|---|
| Karakteristik spektral | 180-2500nm | 200-2500nm | 260-3500nm |
| Transmisi rata-rata | 90% | 85% | 85% |
| Kelas gelembung | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Struktur butir | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Keseragaman | 1-2 | 2 | 2 |
| Fluoresensi | 1 | 2 | 2 |
| Kinerja Radiasi | Tidak berubah warna | Sedikit perubahan warna | Berubah warna |
| SiO₂ | 99,9% |
| Kepadatan | 2,2(g/cm³) |
| Tingkat kekerasan skala moh | 6,6 |
| Titik lebur | 1732℃ |
| Suhu kerja | 1100℃ |
| Suhu maksimum yang dapat dicapai dalam waktu singkat | 1450℃ |
| Transmisi cahaya tampak | Di atas 93% |
| Transmisi wilayah spektrum UV | 80% |
| Titik anil | 1180℃ |
| Titik pelunakan | 1630℃ |
| Titik regangan | 1100℃ |
- Pertama, beri tahu kami persyaratan atau aplikasi Anda.
- Kedua, kami mengutip sesuai dengan persyaratan Anda atau saran kami.
- Ketiga, pelanggan mengonfirmasi sampel dan melakukan deposit untuk pesanan formal.
- Keempat, kami mengatur produksi.
Sorotan Produk
Tabung Kaca Kuarsa Bening - Pemrosesan Cahaya UVC OD 300mm Boiler Termoelektrik Tabung Kaca Kuarsa Lampu Akhir Kaca kuarsa tahan suhu tinggi tersedia dalam dimensi khusus Deskripsi Produk Tabung kaca kuarsa silika bening leburan diproduksi dari pasir kuarsa dengan kemurnian tinggi, menawarkan ...
XRD Sampel Tangki Uji Lembar Pembawa Chip Tangki Tangki Kaca Kuarsa Lembar Contoh Dapat Disesuaikan
Thin Quartz Glass Plate Dimensional Stable 1-1000mm Processing Range Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Specification Quick Details Place of Origin Jiangsu,China Brand SF Material Glass,High quality Optical Glass Usage Optical Structure Double Convex Shape
Photocatalytic Reactor Kimia Kit Glassware
Product description: 1.SiO2> 99.99% ,tubing fused quartz 2.Operating Temperature: 1250℃ 3.Excellent visual and chemical performance . 4.Without surface coating andinfectant . 5.Health care and environmental protection. 6.Any specification can be made. 7.Quartz glass is acidic materials, except hydro fluoric acid and 300 degrees Celsius thermal phosphoric acid, on any other acids were shown to be inert, is the best anti acid materials. The advantages of Customized High Quality
Tidak Ada Gelembung Udara Pelat Kaca Datar Kemurnian Tinggi Kaca Kuarsa Jendela Transparan Kacamata Sight Edaran
No Air Bubble Flat Glass Plates Excellent Visual Performance Circular Shape Quartz Glass Window Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high
break
Product description: Fused clear silica quartz glass plate is made of high purity quartz sand with excellent thermal shock stability and high transmittance. It is widely used in electric light/ laser/ lenses/optical instrument/high temperature window. Application of quartz plate: Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries,
