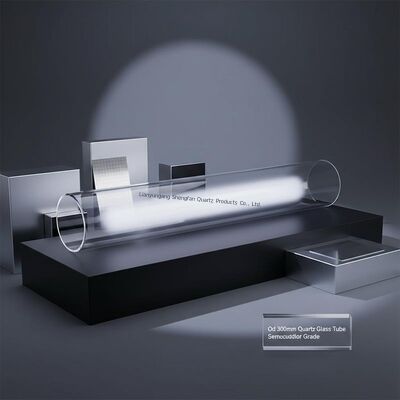

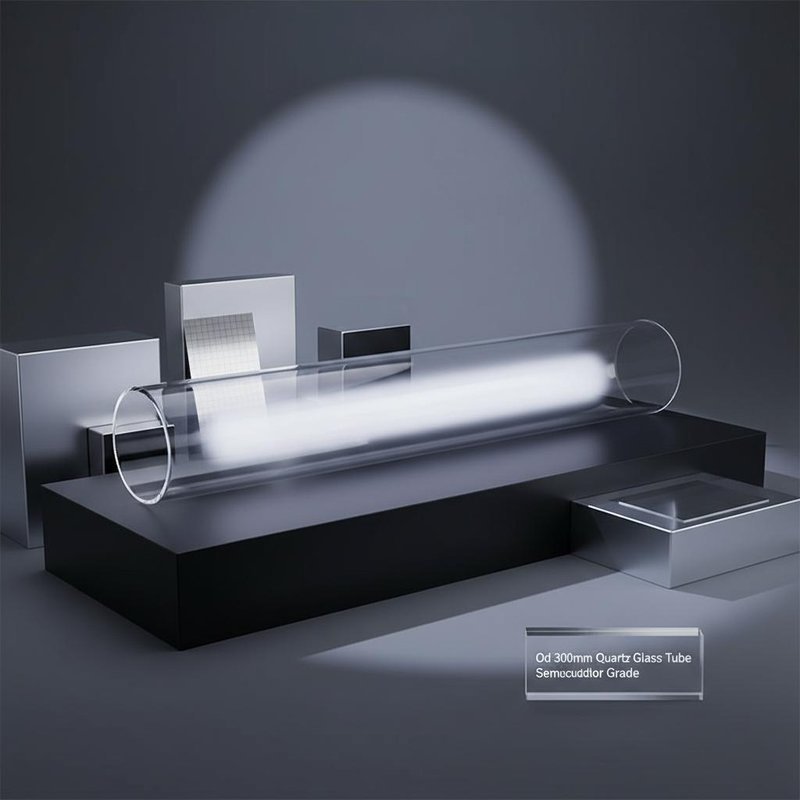

OD 300mm Tahan Suhu Tinggi 1100℃ Tabung Kaca Kuarsa Disesuaikan untuk Aplikasi Semikonduktor
Detail Produk
| Nama Produk: | Tabung Kaca Kuarsa | Bahan: | SiO2> 99,99% |
|---|---|---|---|
| OD: | 3-300mm | Transmisi Cahaya: | > 92% |
| Temparature bekerja: | 1100 ℃ | Kekerasan: | Musa 6.5 |
| Nilai Resistansi: | 1000 kali lipat dari kaca biasa | Aplikasi: | sinar UVC |
| Menyoroti |
Tabung Kaca Kuarsa Cahaya UVC,Tabung Kaca Kuarsa Untuk Semikonduktor,Tabung Kaca Kuarsa Od 300mm |
||
Deskripsi Produk
- Kemurnian tinggi: SiO2 > 99,99%
- Stabilitas termal yang sangat baik dan ketahanan kimia
- Sifat tahan asam dan tahan alkali
- Kepatuhan terhadap perawatan kesehatan dan perlindungan lingkungan
- Tidak ada gelembung udara atau saluran udara
- Sifat isolasi listrik yang unggul
| Jenis | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Karakteristik Spektral | 180-2500nm | 200-2500nm | 260-3500nm |
| Rata-rata Transmisi | 90% | 85% | 85% |
| Kelas Gelembung | 0 | 2 | 2 |
| Pelanggaran | 1-2 | 1-2 | 1-2 |
| Kandungan SiO2 | 990,9% |
| Kepadatan | 2.2 g/cm3 |
| Kekerasan (Skala Moh) | 6.6 |
| Titik Peleburan | 1732°C |
| Suhu Kerja | 1100°C |
| Suhu maksimum jangka pendek | 1450°C |
| Transmittansi Cahaya Terlihat | Lebih dari 93% |
| Transmittansi UV | 80% |
Sorotan Produk
OD 300mm Quartz Glass Tube untuk Aplikasi Semikonduktor Tabung kaca silika kuarsa transparan yang disusun khusus yang diproduksi untuk aplikasi lapangan semikonduktor dengan stabilitas kejut termal yang sangat baik dan pernapasan tinggi. Fitur Produk Kemurnian tinggi: SiO2 > 99,99% Stabilitas termal ...
