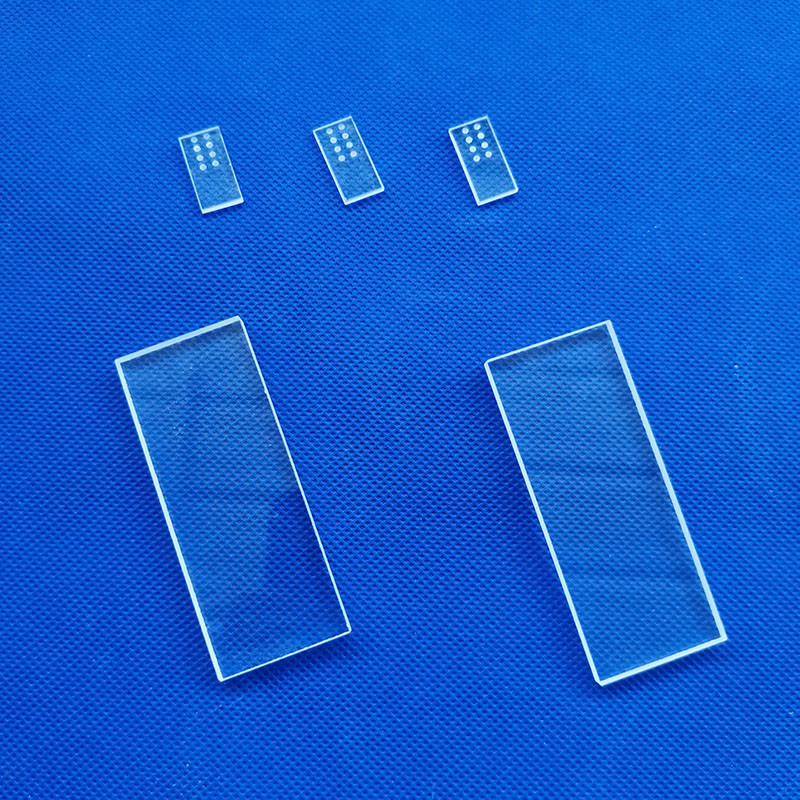

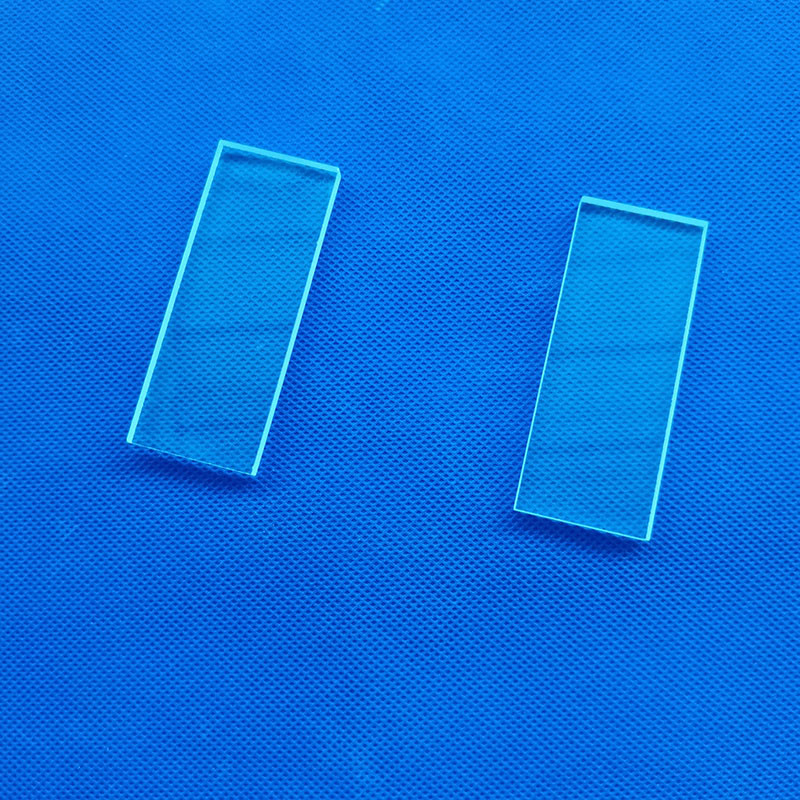

Lensa Observasi Optik Tablet Sapphire Quartz Tahan Suhu Tinggi
Detail Produk
| Jenis: | Pelat Kuarsa Bening | Aplikasi: | Semikonduktor, optik |
|---|---|---|---|
| Ketebalan: | 0,5-100mm | Membentuk: | Kotak |
| Layanan Pemrosesan: | Membungkuk, Pengelasan, Meninju, Memotong, memoles | Nama Produk: | Piring Kuarsa |
| Bahan: | Sio2>99,99% | Kualitas permukaan: | 60/40 |
| Kepadatan: | 2.2g/cm3 | Suhu Kerja: | 1150 |
| Kekerasan: | lebih 6.5 | Titik leleh: | 1750-1850℃ |
| Toleransi asam: | 30 kali dari Keramik, 150 kali dari stainless steel | Ukuran: | disesuaikan |
| titik anil: | 1180℃ | Pelabuhan: | pelabuhan shanghai dan Qindao |
| Menyoroti |
Lensa Observasi Optik Pelat Kaca Kuarsa,Pelat Tablet Kuarsa Safir,Pelat Tablet Kuarsa Tahan Suhu Tinggi |
||
Deskripsi Produk
|
Karakteristik pelat Kuarsa Shengfan
|
|
| *Merek | shengfanquartz |
| *SIO2 | 99,99% |
| *Kepadatan | 2.2 (g/cm³) |
| *Tingkat kekerasan skala moh' | 6.6 |
| *Titik lebur | 1732 |
| * Suhu kerja | 1100℃ |
| * Titik anil | 1180℃ |
| * Titik pelunakan | 1630 |
| Spesifikasi | |
| Warna | Transparan |
| Membentuk | Melingkar / Bulat |
| Standar | JGS1, JGS2, JGS3 |
| Bahan | 99,99% sio2 |
| Diameter | 1-800mm |
| Ketebalan | 0.2-100mm |
| Aplikasi | Jendela kuarsa optik |
| Kepadatan | 2.2 (g/cm³) |
| Transmisi Cahaya | >92% |
| Kekerasan | Musa 6.5 |
| Nilai Resistansi | 1000 kali dari gelas biasa |
| Toleransi | ±0,01 | ± 0,05 mm | ± 0.1mm |
| Pengobatan permukaan | 60/40 | 40/20 | |
| Membentuk | persegi amd lingkaran | bentuk khusus | bentuk apapun dapat dikustomisasi |
| Kasus aplikasi | Jendela kendali jarak jauh | cangkir vakum | lampu kuman |
Rentang yang diterapkan:
