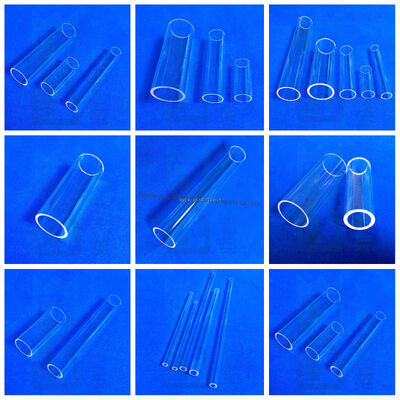

Tinggi kemurnian 99,99% Kuarsa tabung kaca dengan 1100 ° C suhu kerja dan perlindungan UV
Detail Produk
| Nama Produk: | Tabung Kaca Kuarsa | Bahan: | Kaca kuarsa murni |
|---|---|---|---|
| Kapasitas: | 100-850ml | Penggunaan: | rumah/hotel/restoran |
| Temparature bekerja: | 1100 ℃ | Warna: | Transparan |
| Nilai Resistansi: | 1000 kali lipat dari kaca biasa | Karakter: | Buat suara yang menyenangkan saat bersorak |
| Menyoroti |
Tabung Uji Kaca Kuarsa Dimensi Tepat,Tabung Uji Kaca Kuarsa 400 OD,Perlindungan Uv Tabung Kuarsa Fused |
||
Deskripsi Produk
| Properti | Nilai | Properti | Nilai |
|---|---|---|---|
| Kepadatan | 2.2x10³ kg/m³ | Kekerasan | 5.5 - 6.5 Skala Mohs 570 KHN 100 |
| Kekuatan Tarik Desain | 4.8x10⁷ Pa (N/m²) (7000 psi) | Kekuatan Kompresi Desain | Lebih besar dari 1.1 x 10⁹ Pa (160.000 psi) |
| Modulus Curah | 3.7x10¹⁰ Pa (5.3x10⁶ psi) | Modulus Kekakuan | 3.1x10¹⁰ Pa (4.5x10⁶ psi) |
| Titik Pelunakan | 1730°C | Titik Anil | 1215°C |
- Kemurnian tinggi: SiO₂ > 99,99%
- Kinerja visual dan kimia yang sangat baik: tahan asam, tahan alkali, stabilitas termal yang baik
- Perawatan kesehatan dan perlindungan lingkungan
- Tidak ada gelembung udara dan tidak ada garis udara
- Isolator listrik yang sangat baik
| Properti | Nilai |
|---|---|
| SiO₂ | 99,9% |
| Kepadatan | 2.2 (g/cm³) |
| Skala kekerasan Mohs | 6.6 |
| Titik lebur | 1732°C |
| Suhu kerja | 1100°C |
| Suhu Maks (waktu singkat) | 1450°C |
| Transmisi cahaya tampak | Di atas 93% |
| Transmisi wilayah spektral UV | 80% |
| Titik anil | 1180°C |
| Titik pelunakan | 1630°C |
| Titik regangan | 1100°C |
| Tipe | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Karakteristik spektral | 180-2500nm | 200-2500nm | 260-3500nm |
| Transmisi rata-rata | 90% | 85% | 85% |
| Kelas gelembung | 0 | 2 | 2 |
| Birefringence | 1-2 | 1-2 | 1-2 |
| Struktur butir | 1 | 2 | 2 |
| Garis | 1-2 | 2 | 2 |
| Keseragaman | 1-2 | 2 | 2 |
| Fluoresensi | 1 | 2 | 2 |
| Kinerja Radiasi | Tidak berubah warna | Sedikit perubahan warna | Berubah warna |
- Bahan baku utama untuk produksi selubung lampu bakterisida, pemrosesan lebih lanjut menjadi berbagai peralatan gelas laboratorium & instrumen dan tabung tungku
- Aplikasi sumber cahaya
- Industri semikonduktor dan pemanas listrik
- Industri kimia
- Aplikasi optik
