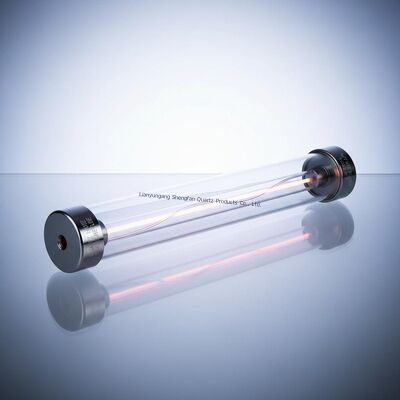

Tabung Kaca Kuarsa Kapiler Silika Fusi dengan Suhu Kerja 1100℃ Kemurnian SiO2 99,99% dan Transmisi Cahaya Tinggi
Detail Produk
| Nama Produk: | kapiler silika yang menyatu | Bahan: | SiO2> 99,99% |
|---|---|---|---|
| PENGENAL: | 0,1-2mm | Ketebalan dinding: | 0,1-5mm |
| Transmisi Cahaya: | > 92% | Temparature bekerja: | 1100 ℃ |
| Nilai Resistansi: | 1000 kali lipat dari kaca biasa | Jenis: | Pipa Kuarsa Bening, Instrumen Penelitian Laboratorium, Pipa Kuarsa Buram |
| Penggunaan: | uji laboratorium, uji kimia, Aplikasi / pengemasan Lab | ||
| Menyoroti |
Tabung Pemanas Kuarsa Silikon Dioksida,Tabung Kaca Uv Pemanas Kuarsa,Tabung Kapiler Kuarsa Menyatu Silika |
||
Deskripsi Produk
| Kepadatan | 2.2x10³ kg/m³ | Kekerasan | 5.5 - 6.5 Skala Mohs (570 KHN 100) |
| Kekuatan Tarik Desain | 4.8x10⁷ Pa (7000 psi) | Kekuatan Tekan Desain | Lebih besar dari 1.1x10⁹ Pa (160.000 psi) |
| Modulus Curah | 3.7x10¹⁰ Pa (5.3x10⁶ psi) | Modulus Kekakuan | 3.1x10¹⁰ Pa (4.5x10⁶ psi) |
| Titik Pelunakan | 1730°C | Titik Anil | 1215°C |
- Kemurnian tinggi: SiO₂ > 99,99%
- Kinerja visual dan kimia yang sangat baik: tahan asam, tahan alkali, stabilitas termal yang sangat baik
- Sesuai dengan perawatan kesehatan dan perlindungan lingkungan
- Tidak ada gelembung udara atau garis udara
- Sifat isolasi listrik yang unggul
| Kandungan SiO₂ | 99,9% |
| Kepadatan | 2,2 g/cm³ |
| Kekerasan (Skala Mohs) | 6,6 |
| Titik Leleh | 1732°C |
| Suhu Kerja | 1100°C |
| Suhu Jangka Pendek Maksimum | 1450°C |
| Transmisi Cahaya Tampak | Di atas 93% |
| Titik Anil | 1180°C |
| Titik Pelunakan | 1630°C |
| Titik Regangan | 1100°C |
- Pembungkus film bantalan udara PE
- Kotak karton
- Karton kayu
- Pembungkus film
- Melalui kereta api, kapal, atau transportasi udara
- Pengiriman ekspres melalui DHL, FEDEX, TNT, EMS, SF, UPS atau sesuai permintaan
- Produk dikirim dalam waktu 3-4 hari kerja setelah pembayaran penuh diterima
Sorotan Produk
Tabung Pemanas Kuarsa Silikon Dioksida Tabung Kaca UV dengan Titik Pelunakan 1683°C Tutup Kapiler Silika Fusi Spesifikasi Tabung Kapiler Silika Fusi Kepadatan 2.2x10³ kg/m³ Kekerasan 5.5 - 6.5 Skala Mohs (570 KHN 100) Kekuatan Tarik Desain 4.8x10⁷ Pa (7000 psi) Kekuatan Tekan Desain Lebih besar dari ...
