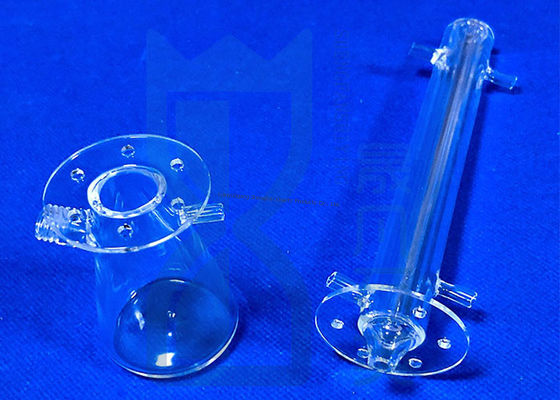

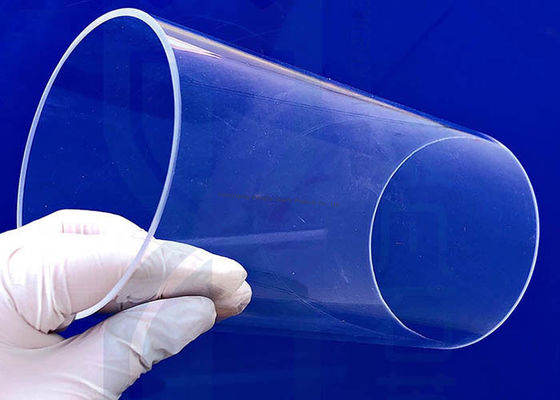

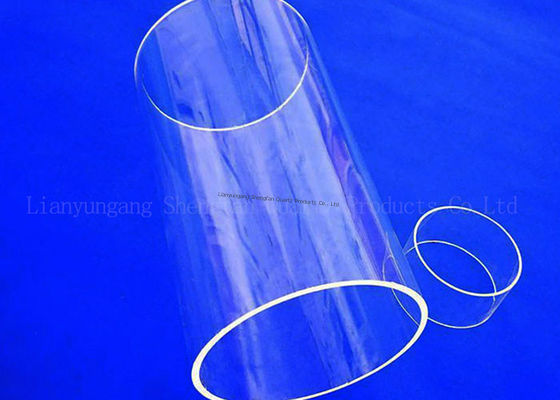

Perlindungan UV Tinggi kemurnian SiO2>99,99% Tabung Kaca Kuarsa Transparan dengan >92% Transmisi Cahaya
Detail Produk
| Bahan: | SiO2> 99,99% | OD: | 3-300mm |
|---|---|---|---|
| Transmisi Cahaya: | > 92% | Temparature bekerja: | 1100 ℃ |
| Kekerasan: | Musa 6.5 | Nilai Resistansi: | 1000 kali lipat dari kaca biasa |
| Menyoroti |
Tabung Kuarsa Fusi Kaca Dimensi Tepat,Tabung Kuarsa Silika Perlindungan Uv,Tabung Kuarsa Silika 400 OD |
||
Deskripsi Produk
| Kepadatan | 2,2×10³ kg/m³ | Kekerasan | 5,5 - 6,5 Skala Mohs (570 KHN 100) |
| Kekuatan Tarik Desain | 4,8×10⁷ Pa (7000 psi) | Kekuatan Kompresi Desain | Lebih besar dari 1,1×10⁹ Pa (160.000 psi) |
| Modulus Curah | 3,7×10¹⁰ Pa (5,3×10⁶ psi) | Modulus Kekakuan | 3,1×10¹⁰ Pa (4,5×10⁶ psi) |
| Titik Pelunakan | 1730°C | Titik Anil | 1215°C |
- Kemurnian tinggi: SiO₂ > 99,99%
- Kinerja visual dan kimia yang sangat baik: tahan asam, tahan alkali, stabilitas termal yang baik
- Sesuai dengan perawatan kesehatan dan perlindungan lingkungan
- Tidak ada gelembung udara atau garis udara
- Sifat isolator listrik yang sangat baik
| Tipe | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Karakteristik Spektral | 180-2500nm | 200-2500nm | 260-3500nm |
| Transmisi Rata-rata | 90% | 85% | 85% |
| Kelas Gelembung | 0 | 2 | 2 |
| Kinerja Radiasi | Tidak berubah warna | Sedikit perubahan warna | Berubah warna |
| Kandungan SiO₂ | 99,9% | Kepadatan | 2,2 g/cm³ |
| Kekerasan (Skala Mohs) | 6,6 | Titik Leleh | 1732°C |
| Suhu Kerja | 1100°C | Suhu Jangka Pendek Maks | 1450°C |
| Transmisi Cahaya Tampak | Di atas 93% | Transmisi Spektral UV | 80% |
Sorotan Produk
Tabung Kuarsa Fusi Kaca Dimensi Presisi Tabung kuarsa silika fusi transparan dengan OD 100-400 dan perlindungan UV, diproduksi dari pasir kuarsa dengan kemurnian tinggi dengan stabilitas kejut termal yang sangat baik dan transmisi tinggi. Ideal untuk pencahayaan listrik, aplikasi laser, lensa, ...
