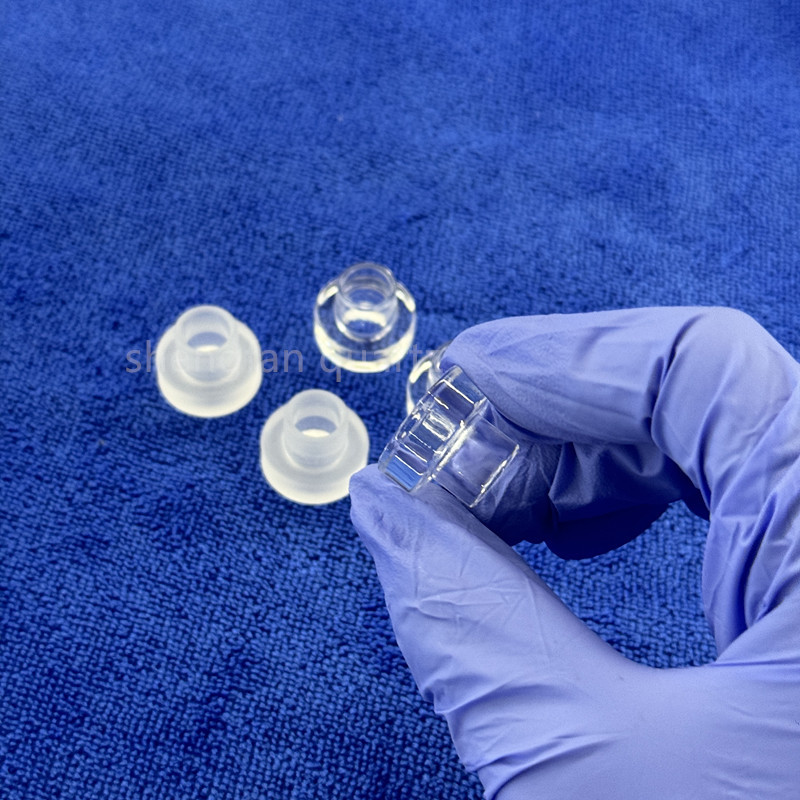

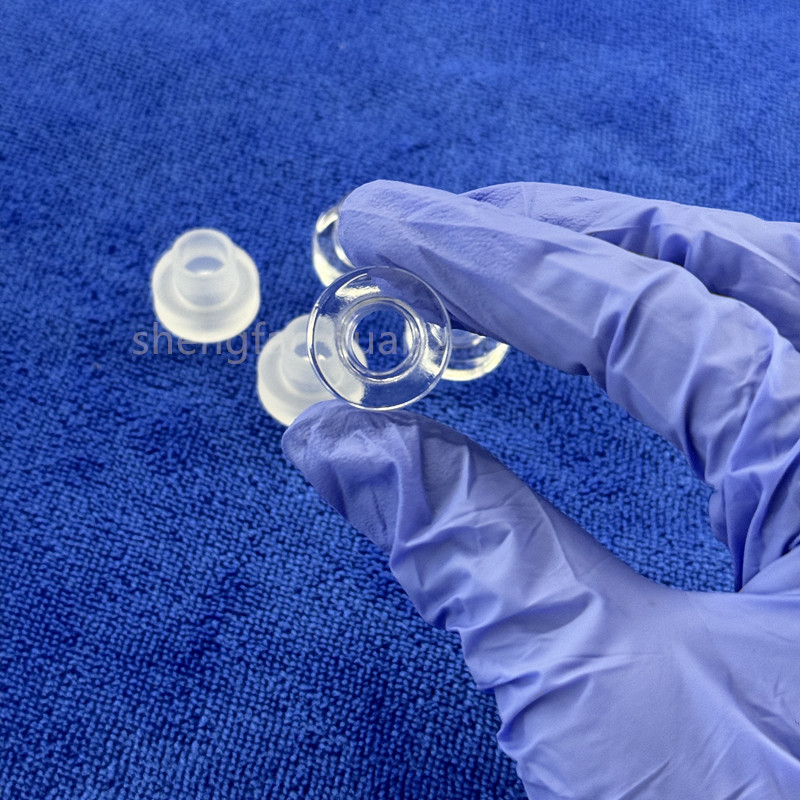

Transparent Frosted Stone Step Fused Quartz Sheet Ketebalan 0,5-100mm
Detail Produk
| Jenis: | Piring Kuarsa Bening | Aplikasi: | Semikonduktor, optik |
|---|---|---|---|
| Ketebalan: | 0,5-100mm | Bentuk: | persegi |
| Layanan Pengolahan: | Meninju, Memotong | Nama produk: | Piring Kaca Kuarsa |
| Bahan: | Sio2 | Sio2: | SIO2>99,99% |
| Kepadatan: | 2,2g/cm3 | Warna: | Bening Transparan |
| Suhu Kerja: | 1100℃ | Titik Peleburan: | 1732℃ |
| Pelabuhan: | pelabuhan shanghai dan qindao | ||
| Menyoroti |
Lembar Kuarsa yang Dilelehkan dengan Langkah Batu,Lembar Kuarsa Tembaga Transparan,100mm Ketebalan Lembar Kuarsa Yang Dilelehkan |
||
Deskripsi Produk
|
Karakteristik pelat Shengfan Quartz
|
|
|
|
*merek
|
Shengfanquartz
|
|
|
*SIO2
|
99.99%
|
|
|
*Kepadatan
|
2.2 ((g/cm3)
|
|
|
* Tingkat kekerasan skala moh
|
6.6
|
|
|
* Titik leleh
|
1732°C
|
|
|
* Suhu kerja
|
1100°C
|
|
|
* Titik penggilingan
|
1180°C
|
|
|
* Titik melembutkan
|
1630°C
|
|
| Kepadatan | 2.2x103 kg/m3 | Kekerasan | 5.5 - 6.5 Skala Mohs 570 KHN 100 |
| Desain Kekuatan Tarikan | 4.8x107 Pa (N/m2) (7000 psi) | Desain Kekuatan Kompresi | Lebih dari 1,1 x l09 Pa (160.000 psi) SMD 5730 |
| Bulk Modulus | 3.7x1010 Pa (5.3x106 psi) | Modulus kekakuan | 3.1x1010 Pa (4.5x106 psi) |
| Titik Perlahan | 1730°C | Titik Annealing | 1215°C |
|
Pengaturan Informasi
|
|
|
|
Warna
|
Transparan
|
|
|
Bentuk
|
Bulat / Bulat
|
|
|
Standar
|
JGS1, JGS2, JGS3
|
|
|
Bahan
|
99.99% SiO2
|
|
|
Diameter
|
1-800mm
|
|
|
Ketebalan
|
0.2-100mm
|
|
|
Aplikasi
|
Jendela optik kuarsa
|
|
|
Kepadatan
|
6.6
|
|
|
Transmisi cahaya
|
> 92%
|
|
|
Kekerasan
|
Mose 6.5
|
|
|
Nilai resistensi
|
1000 kali dari kaca biasa
|
|
