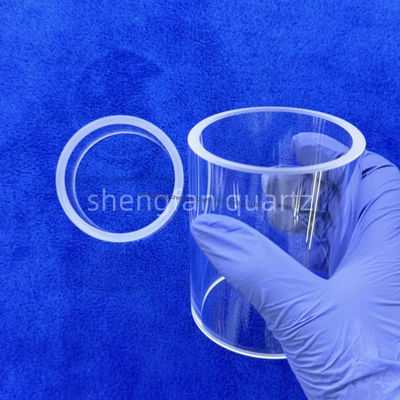

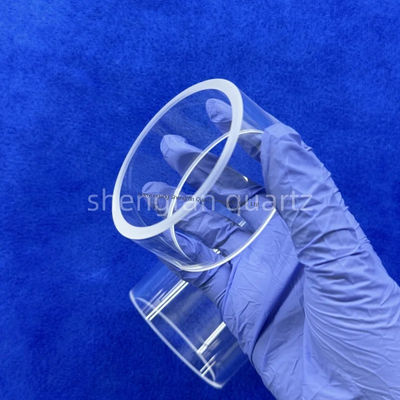

Tabung Kaca Kuarsa Yang Bisa Dikustomisasi Kemurnian Tinggi SIO2 99,99%
Detail Produk
| Jenis: | Tabung kuarsa bening | Aplikasi: | Semikonduktor, optik |
|---|---|---|---|
| Ketebalan: | 1-100mm | Membentuk: | Bulat |
| Layanan Pemrosesan: | Meninju, memotong | Nama Produk: | Tabung uji kuarsa |
| Bahan: | SiO2 | SiO2: | SiO2> 99,99% |
| Kepadatan: | 2.2g/cm3 | Warna: | Bening Transparan |
| Suhu kerja: | 1100 ℃ | Titik lebur: | 1732℃ |
| Pelabuhan: | Port Shanghai dan Qindao | ||
| Menyoroti |
tabung kaca kuarsa yang dilelehkan khusus,tabung kaca kuarsa tahan panas,tabung kaca laboratorium suhu tinggi |
||
Deskripsi Produk
|
Karakteristik tabung Kuarsa Shengfan
|
|
|
|
*Merek
|
shengfanquartz
|
|
|
*SIO2
|
99.99%
|
|
|
*Kepadatan
|
2.2(g/cm³)
|
|
|
*Tingkat kekerasan skala moh
|
6.6
|
|
|
*Titik lebur
|
1732℃
|
|
|
* Suhu kerja
|
1100℃
|
|
|
*Titik anil
|
1180℃
|
|
|
*Titik pelunakan
|
1630℃
|
|
| Kepadatan | 2.2x103 kg/m3 | Kekerasan | 5.5 - 6.5 Skala Mohs 570 KHN 100 |
| Kekuatan Tarik Desain | 4.8x107 Pa (N/m2) (7000 psi) | Kekuatan Tekan Desain | Lebih besar dari 1.1 x l09 Pa (160.000 psi)SMD 5730 |
| Modulus Ruah | 3.7x1010 Pa (5.3x106 psi) | Modulus Kekakuan | 3.1x1010 Pa (4.5x106 psi) |
| Titik Pelunakan | 1730°C | Titik Anil | 1215°C |
|
Informasi Pengaturan
|
|
|
|
Warna
|
Transparan
|
|
|
Bentuk
|
Sirkular / Bulat
|
|
|
Standar
|
JGS1
|
|
|
Bahan
|
99.99% sio2
|
|
|
Diameter
|
1-800mm
|
|
|
Ketebalan
|
0.25-10mm
|
|
|
Aplikasi
|
Jendela kuarsa optik
|
|
|
Kepadatan
|
6.6
|
|
|
Transmisi Cahaya
|
>92%
|
|
|
Kekerasan
|
Mose 6.5
|
|
|
Nilai Resistansi
|
1000 kali dari kaca biasa
|
|

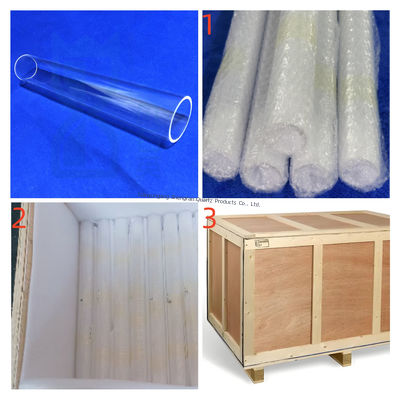

paket
