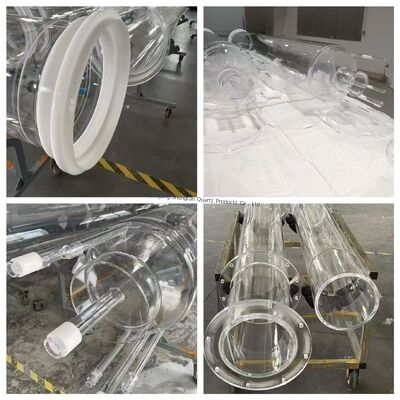

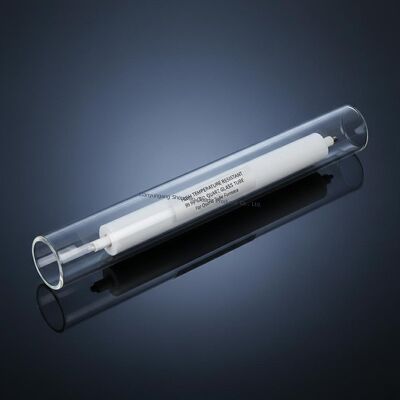

Tabung Kaca Kuarsa Murni Bening Transparan 99,99% SiO2 Tahan Suhu Tinggi untuk Tungku
Detail Produk
| Jenis: | Tabung kuarsa bening | Aplikasi: | Semikonduktor, optik |
|---|---|---|---|
| Ketebalan: | 1-100mm | Membentuk: | Bulat |
| Layanan Pemrosesan: | Meninju, memotong | Nama Produk: | Tabung uji kuarsa |
| Bahan: | SiO2 | SiO2: | SiO2> 99,99% |
| Kepadatan: | 2.2g/cm3 | Warna: | Jelas transparan |
| Suhu Kerja: | 1100 ℃ | Titik lebur: | 1732℃ |
| Pelabuhan: | Port Shanghai dan Qindao | MOQ: | 1 buah |
| Menyoroti |
Tabung kaca kuarsa tahan suhu tinggi,Tabung Silika Terpadu Kemurnian SiO2 99,99%. |
||
Deskripsi Produk
| Properti | Nilai |
|---|---|
| Merek | Shengfanquartz |
| SiO2 kemurnian | 99.99% |
| Kepadatan | 2.2 (g/cm3) |
| Kekerasan (Skala Mohs) | 6.6 |
| Titik Peleburan | 1732°C |
| Suhu Kerja | 1100°C |
| Titik Annealing | 1180°C |
| Titik Perlahan | 1630°C |
| Kepadatan | 2.2x103 kg/m3 | Kekerasan | 5.5 - 6.5 Skala Mohs |
| Kekuatan tarik | 4.8x107 Pa (7000 psi) | Kekuatan Kompresi | > 1,1 x 109 Pa (160.000 psi) |
| Bulk Modulus | 3.7x1010 Pa | Modulus kekakuan | 3.1x1010 Pa |
| Titik Perlahan | 1730°C | Titik Annealing | 1215°C |
| Parameter | Spesifikasi |
|---|---|
| Warna | Transparan |
| Bentuk | Bulat / Bulat |
| Standar | JGS1 |
| Bahan | 990,99% SiO2 |
| Diameter | 1-800mm |
| Ketebalan | 0.25-10mm |
| Aplikasi | Jendela optik kuarsa |
| Transmisi cahaya | > 92% |
| Nilai resistensi | 1000 kali dari kaca biasa |
- SiO2 kemurnian lebih dari 99,99%
- Suhu operasi: 1250°C, Suhu pelembut: 1730°C
- Kinerja visual dan kimia yang sangat baik
- Tidak ada lapisan permukaan atau kontaminan
- Perawatan kesehatan dan perlindungan lingkungan sesuai
- Dimensi khusus tersedia
- CE, RoHS, SGS disetujui
Sorotan Produk
Tahan suhu tinggi 99,99% SiO2 Kejernihan Tabung Kaca Kuarsa Spesifikasi Produk Properti Nilai Merek Shengfanquartz SiO2 kemurnian 99.99% Kepadatan 2.2 (g/cm3) Kekerasan (Skala Mohs) 6.6 Titik Peleburan 1732°C Suhu Kerja 1100°C Titik Annealing 1180°C Titik Perlahan 1630°C Kepadatan 2.2x103 kg/m3 ...
