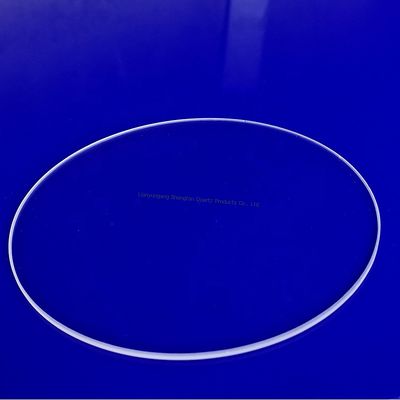

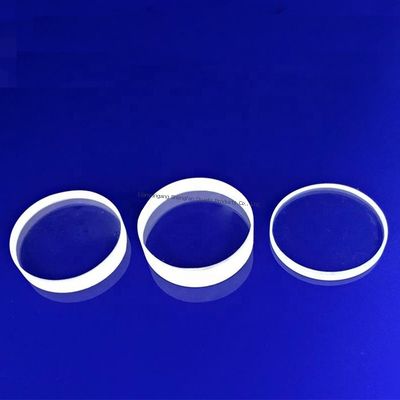

Pelat Kaca Kuarsa Bening Optik dengan Kekerasan Unggul dan Ketahanan Guncangan Termal untuk Peralatan Ilmiah
Detail Produk
| Jenis: | Pelat kuarsa yang jelas | Aplikasi: | Semikonduktor, optik |
|---|---|---|---|
| Ketebalan: | 0,5-100mm | Membentuk: | Kotak/Bulat |
| Layanan Pemrosesan: | Membungkuk, mengelas, meninju, memoles | Nama Produk: | piring kuarsa |
| Bahan: | SiO2> 99,99% | Kepadatan: | 2.2g/cm3 |
| Temparature bekerja: | 1150 ℃ | Kekerasan: | Morse 6.5 |
| Titik leleh: | 1750-1850 ℃ | Toleransi asam: | 30 kali dari keramik, 150 kali dari stainless steel |
| Ukuran: | disesuaikan | Titik anil: | 1180 ℃ |
| Titik regangan: | 1100 ℃ | Pelabuhan: | Port Shanghai dan Qindao |
| Menyoroti |
Pelat Kaca Kuarsa Bening Secara Optik,tahan kelelahan termal dari pelat kaca kuarsa,peralatan ilmiah lempeng kaca kuarsa |
||
Deskripsi Produk
| Properti | Nilai |
|---|---|
| Merek | Shengfan Quartz |
| Kandungan SiO₂ | 99,99% |
| Kepadatan | 2,2 g/cm³ |
| Kekerasan (Skala Mohs) | 6,6 |
| Titik Leleh | 1732℃ |
| Suhu Kerja | 1100℃ |
| Titik Anil | 1180℃ |
| Titik Pelunakan | 1630℃ |
| Parameter | Spesifikasi |
|---|---|
| Warna | Transparan |
| Bentuk | Persegi / Bulat |
| Standar | JGS1, JGS2, JGS3 |
| Bahan | 99,99% SiO₂ |

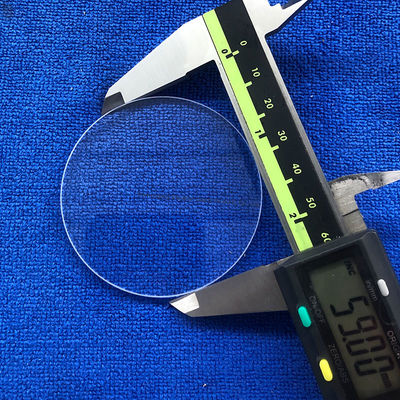

| Diameter | 1-800mm |
| Ketebalan | 0,2-100mm |
| Aplikasi | Jendela Kuarsa Optik |
| Transmisi Cahaya | >92% |
| Kekerasan | Mohs 6,5 |
| Nilai Ketahanan | 1000 kali kaca biasa |
- Berikan gambar dimensi terperinci
- Kami memproduksi produk sesuai spesifikasi Anda
- Ketahanan korosi yang luar biasa
- Toleransi suhu tinggi
- Penampilan yang menarik secara estetika
- Desain struktural yang ringkas
- Mudah dioperasikan dan dirawat
- Kemampuan transmisi cahaya superior
- Sifat isolasi listrik yang sangat baik
- Berikan persyaratan atau detail aplikasi Anda
- Kami memberikan penawaran berdasarkan spesifikasi Anda
- Pelanggan mengonfirmasi sampel dan melakukan deposit
- Kami mengatur produksi
Sorotan Produk
Pelat Kaca Kuarsa Bening Optik Pelat kaca kuarsa dengan kemurnian tinggi dengan kekerasan superior dan ketahanan kejut termal yang luar biasa, ideal untuk peralatan ilmiah dan aplikasi industri. Spesifikasi Produk PropertiNilai MerekShengfan Quartz Kandungan SiO₂99,99% Kepadatan2,2 g/cm³ Kekerasan ...
