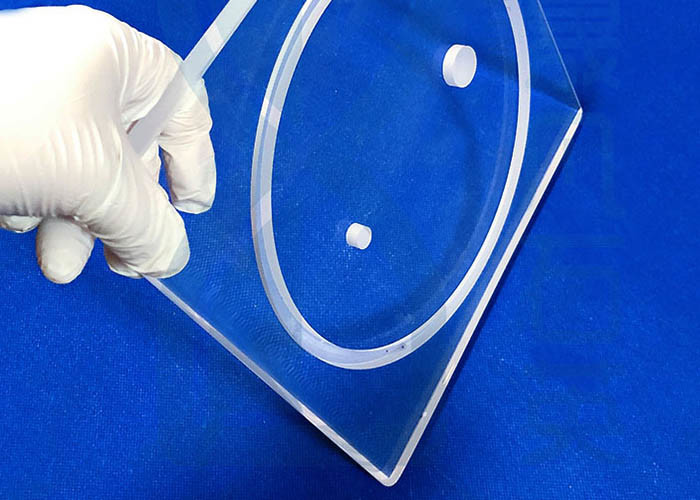

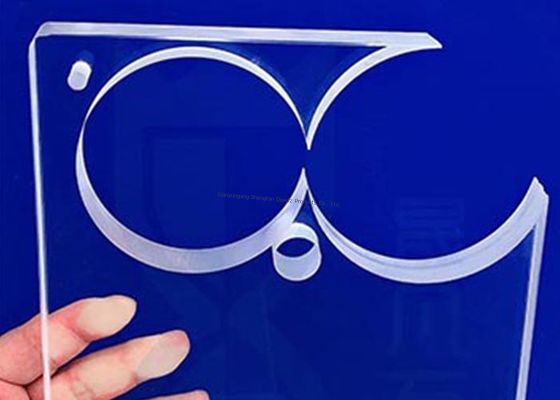

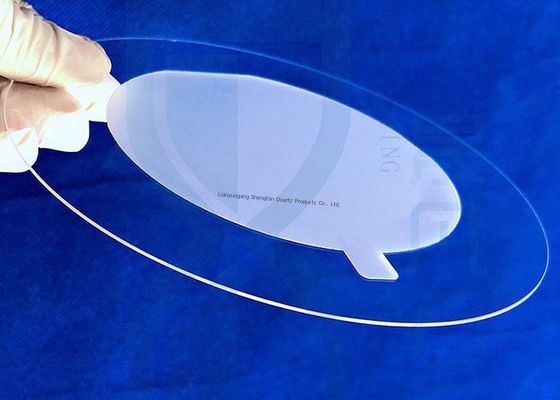

99.99% Pelat Kuarsa Kemurnian Tinggi Laser Grooving Jendela Kaca Kuarsa Silika Fusi
Detail Produk
| Nama Produk: | Pelat Kaca Kuarsa | Bahan: | SiO2> 99,99% |
|---|---|---|---|
| Kepadatan: | 2.2g/cm3 | Transmisi Cahaya: | 92% |
| Kekerasan: | Morse 6.5 | Temparature bekerja: | 1150 ℃ |
| Toleransi: | ±0,02mm | Mencicipi: | disesuaikan |
| Menyoroti |
Pelat Kuarsa Menyatu Transmisi Cahaya 92%.,1150°C Suhu Kerja Plat Kaca Kuarsa,Pelat Silika Lebur Kepadatan 2.2g/cm³ |
||
Deskripsi Produk
- Kompleks industri militer
- Mesin dan metalurgi
- Peralatan pencetakan dan pewarnaan
- Instrumen optik
- Kacamata penglihatan suhu tinggi
- Industri lubang api
- Peralatan sumber cahaya listrik
- Instrumen laboratorium
- Peralatan kimia
| Kandungan SiO2 | 990,9% |
| Kepadatan | 2.2 g/cm3 |
| Kekerasan (Skala Moh) | 6.6 |
| Titik Peleburan | 1732°C |
| Suhu Kerja | 1100°C |
| Suhu Maksimum Jangka Pendek | 1450°C |
| Transmittansi Cahaya Terlihat | Lebih dari 93% |
| Transmittansi Wilayah Spektral UV | 80% |
| Titik Annealing | 1180°C |
| Titik Perlahan | 1630°C |
| Titik Tekanan | 1100°C |
| Jenis | JGS1 (ZS-1) | JGS2 (ZS-2) | JGS3 (HS) |
|---|---|---|---|
| Karakteristik Spektral | 180-2500nm | 200-2500nm | 260-3500nm |
| Rata-rata Transmisi | 90% | 85% | 85% |
| Kelas Gelembung | 0 | 2 | 2 |
| Pelanggaran | 1-2 | 1-2 | 1-2 |
| Struktur biji-bijian | 1 | 2 | 2 |
| Fringe | 1-2 | 2 | 2 |
| Keseragaman | 1-2 | 2 | 2 |
| Fluoresensi | 1 | 2 | 2 |
| Kinerja Radiasi | Tidak berubah warna | Sedikit perubahan warna | Mengubah warna |
- Berikan persyaratan atau aplikasi Anda
- Kami mengutip sesuai dengan kebutuhan Anda atau saran kami
- Pelanggan mengkonfirmasi sampel dan menempatkan deposit untuk pesanan formal
- Kami mengatur produksi
Sorotan Produk
